Forged brass body with plastic handle Machined chrome plated brass ball Nickel plated surface treatment Nominal pressure:145 psi(10 bar) Working temperature: -10℃≤t≤120℃ suitable for: water, Oil, Gas Female/male threaded ends according to ISO 228

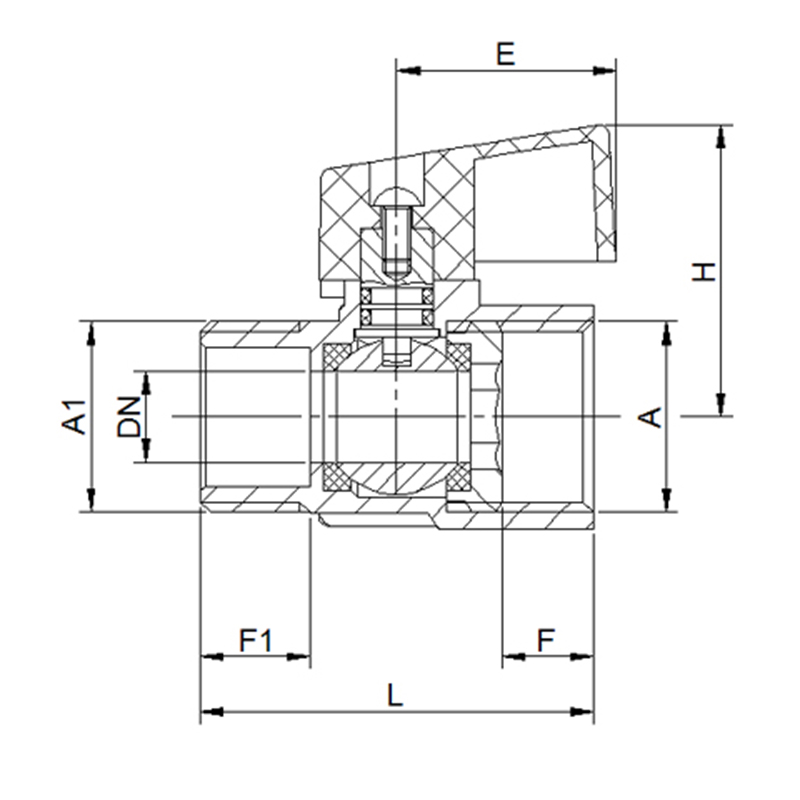

Size	Dn	Length	Height	Qty/Ctn
1/4"	8	39	31	300
3/8"	8	39	31	300
1/2"	10	43	32	216

No.	Name	Material
2	Seal	PTFE
3	Ball	Brass
4	Stem	Brass
5	Double O-ring	NBR
6	Body	Brass
7	Handle	Plastic

● Brass Valve Body: High-density forging, no blister, no air holes, no leakages. Made by special high precision CNC machines. ● Valve Ball: Smooth and wear-resisting, with good sealing performance. ● Brass Valve Stem: Made of hot-rolled brass, high tensile strength, good toughness without deformation, fracture. ● Ball Seat: Made by pure PTFE(polytetrafluoroethylene), with high elasticity and wear resistance, is not easy aging. ● Ring: NBR, small friction coefficient, long service life, and not easy to leak.
